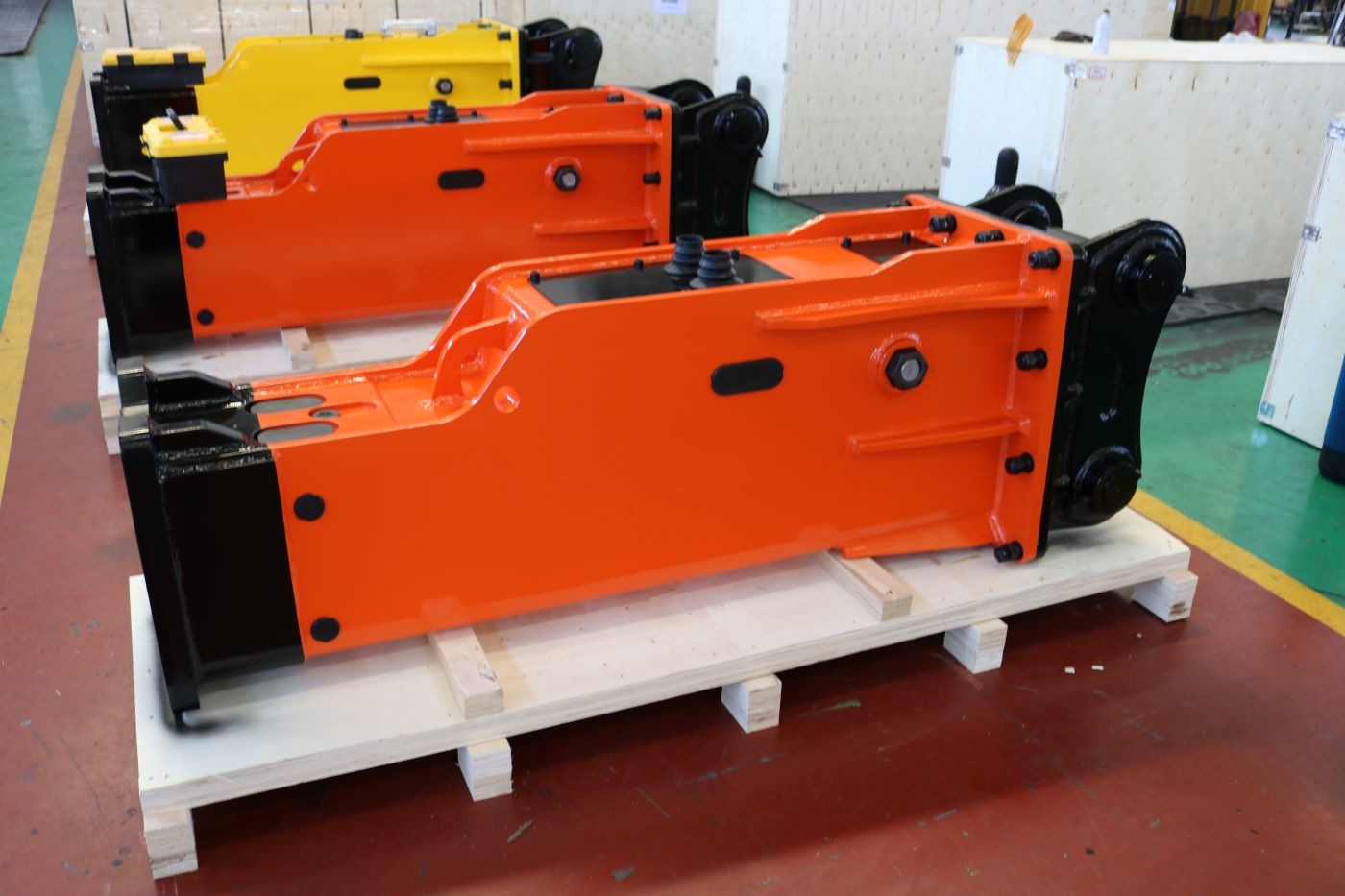

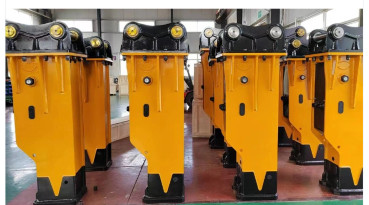

28-35 Tons Excavator box type SB121 tool 155mm breaker Excavator attachment heavy duty hard rock stone mining using
An excavator hydraulic hammer, also known as an excavator-mounted hydraulic breaker, is a powerful attachment used for breaking and demolishing hard materials such as concrete, rocks, asphalt, and compacted soil. It is specifically designed to deliver high-impact blows by utilizing the hydraulic power of the excavator.

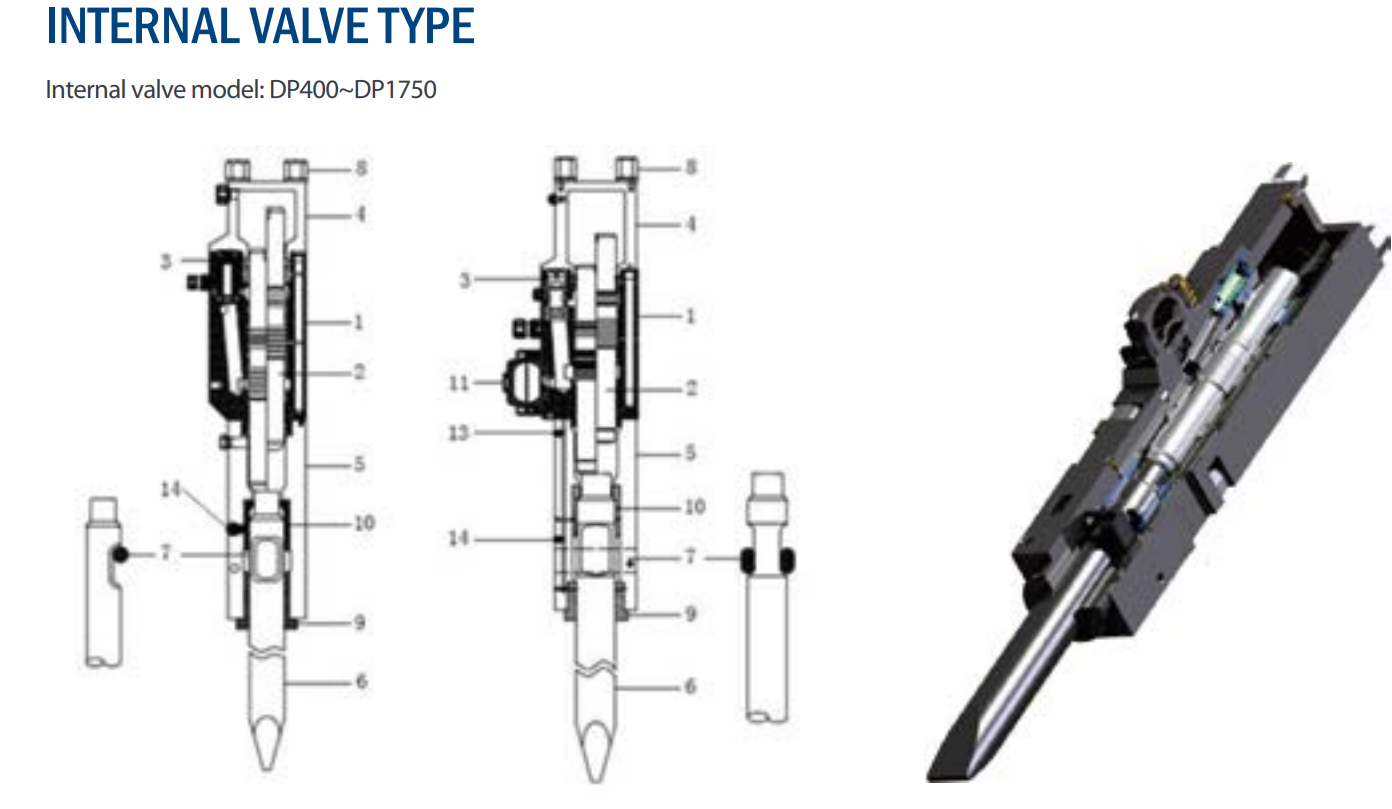

The excavator hydraulic hammer consists of a heavy-duty hammer mechanism that is connected to the excavator's hydraulic system. When activated, the hydraulic hammer uses the pressurized hydraulic fluid to generate intense energy, which is then transferred to the tool or chisel at the tip of the attachment. The chisel strikes the material with significant force, breaking it apart and allowing for excavation or removal.
Our Advantages
*Quality: Our hydraulic breakers are high technology . Using high-quality steel, professional heat treatment technology, and skilled
workers to produce each hydraulic breaker.
* Service: Our company has the complete pre-sale and after-sale system. For hydraulic breakers, we can provide 12 months of
warranty time and we are at your service 24 hours a day.
* Installation: hydraulic breakers conform to all the small, medium and large excavators on the market, and the strike
force and durability are leading the industry level.
| SPECIFICATION |
| Model | | DPBB400 | DPBB450 | DPBB530 | DPBB680 | DPBB750 | DPBB1000 |
Suitable
Excavator | Min | ton | 0.8 | 1.2 | 2.5 | 4 | 6 | 11 |
| Max | ton | 2.5 | 3 | 4.5 | 7 | 9 | 16 |
| Suitable | ton | 1 | 2 | 3 | 6 | 7 | 14 |
Tool
(MoilType) | Weight | Kg | 4 | 6 | 9 | 20 | 25 | 59 |
| Diameter | mm | 40 | 45 | 53 | 68 | 75 | 100 |
Operating Weight
(Tool+MC) | | Kg | 102 | 126 | 152 | 295 | 375 | 861 |
| | lb | 298 | 320 | 397 | 683 | 838 | 1962 |
| Height | | mm | 1135 | 1213 | 1317 | 1620 | 1899 | 2316 |
Operating Pressure
(Breaker) | | bar | 80～100 | 80～100 | 90～120 | 95～130 | 100～140 | 150～170 |
| | psi | 1,160～1,450 | 1,160~1,450 | 1,305~1,740 | 1,377～1,885 | 1,450~2,030 | 2,175～2,465 |
Setting Pressure
(Machine) | | bar | 150 | 150 | 150 | 170 | 180 | 200 |
| | psi | 2175 | 2175 | 2175 | 2465 | 2610 | 2900 |
| Impact Rate | | bpm | 800～1,400 | 700～1,200 | 600～1,100 | 500～900 | 400～800 | 350～700 |
BackHead Pressure
(N2-Gas) | | bar/psi | 14/203 | 14/203 | 16/232 | 16/232 | 16/232 | 16/232 |
| Required Oil Flow | | l/min | 15～30 | 20～40 | 25～50 | 40~70 | 50～90 | 80～110 |
| | | | | | | | |
| | | | | | | | | |

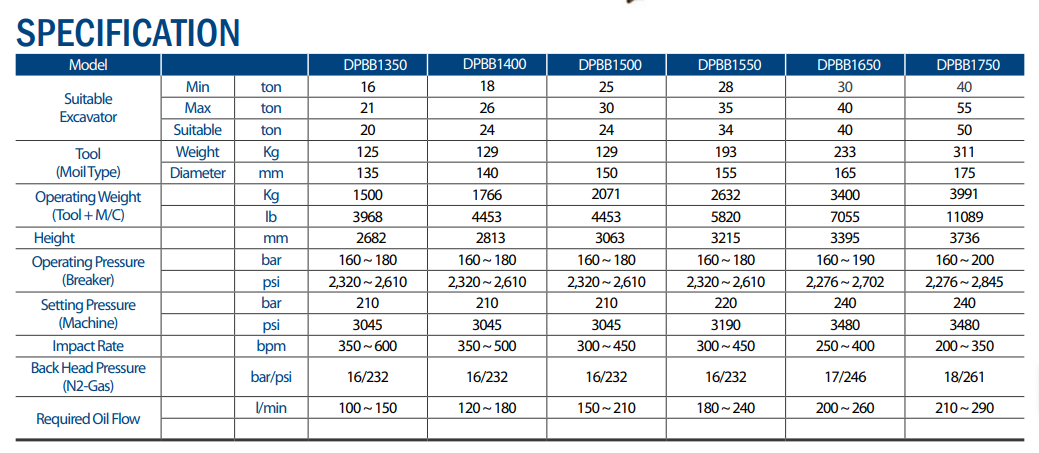

| SPECIFICATION |
| Model | | DPBB1350 | DPBB1400 | DPBB1500 | DPBB1550 | DPBB1650 | DPBB1750 |
Suitable
Excavator | Min | ton | 16 | 18 | 25 | 28 | 30 | 40 |
| Max | ton | 21 | 26 | 30 | 35 | 40 | 55 |
| Suitable | ton | 20 | 24 | 24 | 34 | 40 | 50 |
Tool
(Moil Type) | Weight | Kg | 125 | 129 | 129 | 193 | 233 | 311 |
| Diameter | mm | 135 | 140 | 150 | 155 | 165 | 175 |
Operating Weight
(Tool+M/C) | | Kg | 1500 | 1766 | 2071 | 2632 | 3400 | 3991 |
| | lb | 3968 | 4453 | 4453 | 5820 | 7055 | 11089 |
| Height | | mm | 2682 | 2813 | 3063 | 3215 | 3395 | 3736 |
Operating Pressure
(Breaker) | | bar | 160～180 | 160～180 | 160～180 | 160～180 | 160～190 | 160～200 |
| | psi | 2,320～2,610 | 2,320～2,610 | 2,320～2,610 | 2,320～2,610 | 2,276~2,702 | 2,276～2,845 |
Setting Pressure
(Machine) | | bar | 210 | 210 | 210 | 220 | 240 | 240 |
| | psi | 3045 | 3045 | 3045 | 3190 | 3480 | 3480 |
| Impact Rate | | bpm | 350～600 | 350～500 | 300～450 | 300～450 | 250～400 | 200～350 |
Back Head Pressure
(N2-Gas) | | bar/psi | 16/232 | 16/232 | 16/232 | 16/232 | 17/246 | 18/261 |
| Required Oil Fow | | l/min | 100～150 | 120～180 | 150～210 | 180～240 | 200～260 | 210～290 |
| | | | | | | | |
| Suit for Various models of excavator |
| YUCHAI | YC35YC50YC55YC60YC65YC85YC135YC230 |
| JCB | JS130JS210JS220JS290JS330 |
| HYUNDAI | R55R60R80R130LC35R200R2005R210R2157/9R2205R225LC7/9R290 |
| R290R290LC7R300LCR305LCR330LCR375R360LC7R450LC |
| CA*TERPILLAR | CA*T305.5CA*T306CA*T307CA*T308CA*T312CA*T315CA*T320CA*T323CA*T324 |
| CA*T325CA*T326CA*T330CA*T336CA*T345CA*T349CA*T365CA*T374CA*T390 |
| KOMATSU | PC45PC50PC55PC56PC60567PC608PC708PC78PC1003PC1206 |
| PC1307PC2007/8PC220PC270PC240PC3006/7PC360PC4006/7/8 PC4506 |
| PC6006PC6503PC650PC800PC1000PC1200PC1250 |
| ZXAIS/HITACAI | EX35EX40EX55EX60EX603ZX200ZX210ZX250ZX290ZX330ZX470EX1000EX1200 |
| EC | EC55EC60EC140BPEW145BPEW160BBEC210EC240 |
| EC290EC360LCEC380.EC460EC480EC700 |
| KOBELCO | SK35SK50SK60SK75SK100SK120SK200123456SK230SK250SK260SK280 |
| SK300SK330SK3306SK350SK400SK450SK480 |
| DOOSAN/DAEWOO | DH35DH55DH60DH55DH60DH80DH807DH80GOLDDH150 |
| DH200DH22035DH2805DX60DX200DX225DX260DH290DH360DH420DH500 |
| SUMITOMO | SH55SH60SH75SH50SH100SH120SH200 |
| SH20035SH22023SH280SH300SH350SH400SH450 |
| LIUGONG | CLG904CLG9055CLG906CLG907CLG9075CLG908CLG915CLG150 |
| CLG920CLG921CLG922CLG225CLG924CLG925CLG933CLG936CLG939 |
| CLG942 CLG948CLG950CLG952CLG200CLG205CLG220CLG225 |
| KUBOTA | KX135KX185KX155KX161KX163KX165KX183 |
| IHI | IHI35IHI50IHI60IHI55IHI80IHI100 |
| XCMG | XE55XE60XE65XE75XE80XE85XE135XE150XE155XE200XE205XE215 |
| XE225XE245XE270XE305XE335XE370XE380XE400XE470XE490 XE700 |
| YANMAR | ViO35ViO55ViO75 |
| cx | CX50CX55CX58CX75CX210CX240CX290CX330 |
| KATO | HD820HD1023HD1430HD2045HD700 |
| SANY | SY55SY60SY65SY70SY75SY85SY95SY115SY135SY155SY195SY200SY205SY215 |
| SY220SY225SY235SY245SY285SY305SY335SY365SY375 SY395SY415SY485 |
